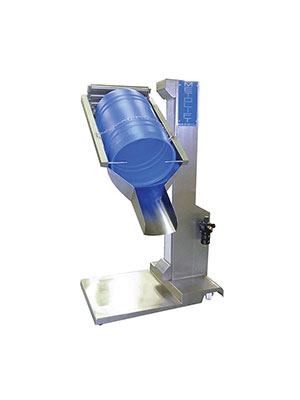

Drum Dumpers And Tippers

Drum dumpers, tilters and tippers are used in a variety of ways during industrial production. They are ideal for charging coaters; filling hoppers, reactors and other process vessels; dispensing applications; and discharging powders, granules, pellets and tablets. A patented tilt profile system, and tampered custom chutes allow for ease in charging tablet coaters with vertical charging ports; filling hoppers, reactors and general applications.

No items found.

Features

  • Economical, yet highly efficient, METO Systems’ dumping, tilting and tipping equipment is perfect for budget-conscious operations
  • Highly customizable and sanitary for clean room operations of all types
  • Ideal for charging coaters; filling hoppers, reactors and other process vessels; dispensing applications; and discharging powders, granules, pellets or tablets

METO Systems offers a variety of configurations to fit the needs of our customers, and our equipment can accommodate every sort of application—from a controlled flow to complete emptying.

Custom options include fittings for multiple simultaneous discharges, custom chute configurations (straight, tapered, necked), a variety of surface finishes, right or left discharge, sanitary roller slot cover and increased lift capacity (standard capacity is 150 kg (330 lbs). Our dumping, tilting and tipping equipment is also available in mobile or stationary designs.

When controlled product flow or precise dumping is called for, consider one of METO Systems’ dumpers, tilters or tippers. Our equipment can be customized for your operation and application requirements and can handle drums, boxes and pails of all types and sizes.

  • Drives: Pneumatic, Electric, Hydraulic
  • Controls: Pneumatic, electric (24 VDC), basic, semi-automatic, full automation through PLC, integrated communication with plant control systems
  • Stainless Steel construction with fine finishes for hygienic drum tipper
  • Lift attachment configured to the requirements of the specific application
  • Fail-safe lift mechanisms hold the lift in position without drift even on loss of utilities
  • Interlocking with gates and barriers forces a specific sequence of operation thereby enhancing operator safety
  • Rotational column option provides for precise positioning
  • The simplicity of design using standard components means minimized maintenance costs
